HS-AV

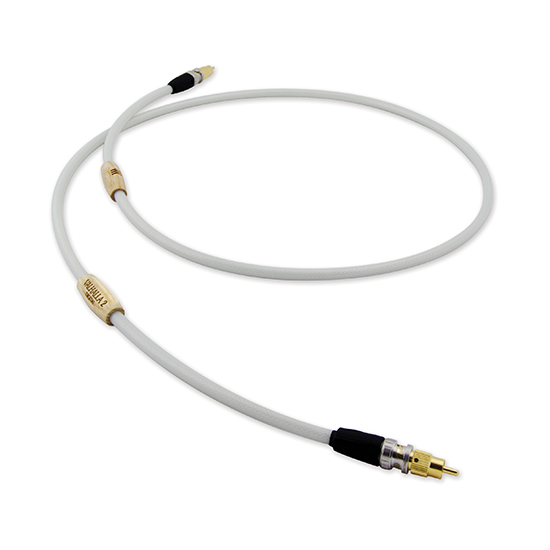

NORDOST 2VHD1.25M

VALHALLA 2 天王Ⅱ-數位線

8NOFC包銀85μm 75Ω 1×16AWG 110Ω 2×18AWG 雙絲隔離。$99000/1.25m

  • 市場售價 : $99000/1.25m.元
  • 網路特價 : $66000.
數量 :
share :

產品特色

NORDOST是美國一家非常專業,  獨特設計的線材品牌,其產品主要市場在醫療50%,軍事20%,航太15%,和家用15%
設計理論主要在:
一.以鐵氟龍做隔絕和被覆材料,以求最好的品質穩定度和物理特性
二.以雙絲或單絲纏繞導體作為隔絕振動和隔絕電磁干擾的主要重點
三.研磨包銀導體直至光滑無痕以提高信號流暢量.並能保持長期不氧化變黑
四.採用6N至8N之高純度銅(OFC),以達成最純淨無雜的信號傳導
五.單蕊包覆,多股成形的線身設計.對降低集膚效應.提高信號流量有很大的效益

其產品概分四個等級
VALHALLA 2
昔日旗艦VALHALLA之新二代,8N銅包銀85μm,雙絲隔離為其特點

產品規格

75 OHM SPECIFICATIONS
Insulation:High purity class 1.1 extruded Fluorinated Ethylene Propylene (FEP)
Construction:Mechanically tuned spacing, length and Dual Mono-Filament, Co-axial design
Conductors:1 x 16 AWG
Material:Silver-plated 99.999999% solid core OFC
Capacitance:15.3pF/ft
Impedance:75 Ohm
Overall Shield Coverage:98% Total coverage with 2 layers of silver-plated shielding
Velocity of Propagation:89%
Termination: Gold-plated true 75 Ohm Neutrik BNC. Gold-plated BNC to RCA adapter included.
Termination:Nordost HOLO:PLUGR gold-plated Spade or Nordost’s gold-plated, low-mass Z-plug Banana


110 OHM SPECIFICATIONS
Insulation:High purity class 1.1 extruded Fluorinated Ethylene Propylene (FEP)
Construction:Mechanically tuned spacing, length and Dual Mono-Filament, Twin-axial design
Conductors:2 x 18 AWG
Material:Silver-plated 99.999999% solid core OFC
Capacitance:10.5pF/ft
Impedance:110 Ohm
Overall Shield Coverage:98% Total coverage with 2 layers of silver-plated shielding
Velocity of Propagation:89%
Terminations:Gold-plated true 110 Ohm HOLO:PLUG® XLR
